UPVC Sliding Doors

UPVC Sliding Doors

In Sliding doors two or more frames slide horizontally on tracks to the left or the right.

The doors are slightly raised above the track for smooth slide and also preventing dust from settling down in the track. Sliding doors are ideal for homes that require space-economy.

Sliding doors are affordable option to bring more light into your home, as these cost effective doors can support large spans of glass and have a relatively slim vertical profile.

This allows you to maximise the amount of light that can enter your home, showcasing the space to best effect.

Download Brochure

Technical Information

Single Glass

Glass: Single Glass
Profile System: ORTA
Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame

2100yesyesyesyesyes
1800yesyesyesyesyes
1600yesyesyesyesyes
10001200160018002100

Outside Width of Frame

Two Point Lock (Handle + Espag.)

Single Glass

Glass: Single Glass
Profile System: SF2
Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame

2600yesyesyesyesyesyes
2400yesyesyesyesyesyes
2000yesyesyesyesyesyes
1800yesyesyesyesyesyes
140016001800200024002600

Outside Width of Frame

Two Point Lock (Handle + Espag.)

Double Glass

Glass: Double Glass
Profile System: ORTA
Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame

2100yesyes
1800yesyesyesyes
1600yesyesyesyesyes
1400yesyesyesyesyes
1200yesyesyesyesyes
1000yesyesyesyes
8001000120014001600

Outside Width of Frame

Two Point Lock (Handle + Espag.)

Double Glass

Glass: Double Glass
Profile System: SF2
Sizes represent a Design of 2Track / 2Sash in Frame

Height of Frame

2600yesyesyesyesyesyes
2400yesyesyesyesyesyes
2000yesyesyesyesyesyes
1800yesyesyesyesyesyes
140016001800200024002600

Outside Width of Frame

Two Point Lock (Handle + Espag.)

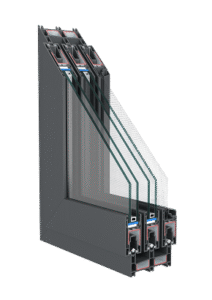

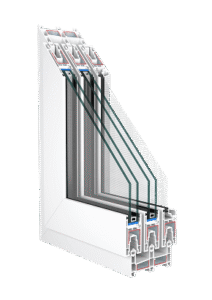

Sectional Drawing – Sliding Door ORTA

Sliding Door ORTA

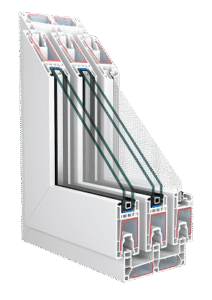

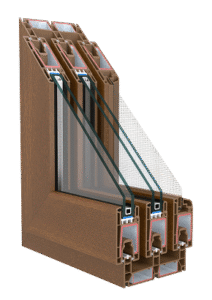

Sectional Drawing – Sliding Door SF2

Sliding Door SF2
